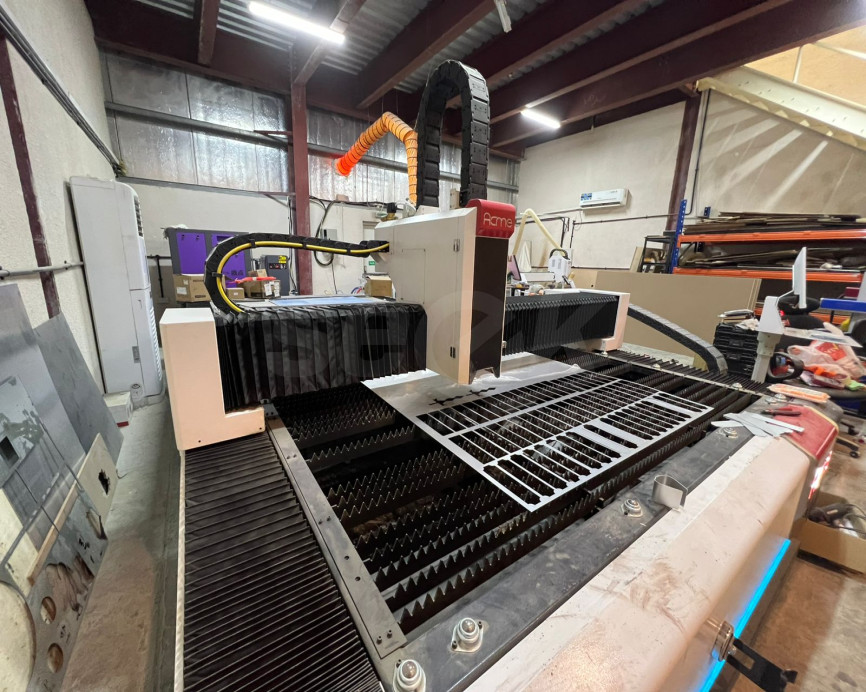

Acme CNC Fiber Laser Cutting Machine | 3000x1500mm | Max Photonics Laser Source URGENT SALE
USD 40,840.00
Metal working
LP 4020S
China China
2025 United Arab Emirates
Machine Details
Item Details
| Name | Acme CNC Fiber Laser Cutting Machine | 3000x1500mm | Max Photonics Laser Source URGENT SALE |
|---|---|
| Item Code | SM2605769 |
| Model No | LP 4020S |
| Serial No | 25312 |
| Usage | new |
| Industry | Metal working |
| Manufacturer | China |
| Year of Manufacture | 2025 |
| Country of Origin | China |
| Posted On | 11-05-2026 |
| Machine Location | United Arab Emirates |
Description
Designed for high-speed, high-precision cutting of various metals including stainless steel, carbon steel, aluminum, and brass.

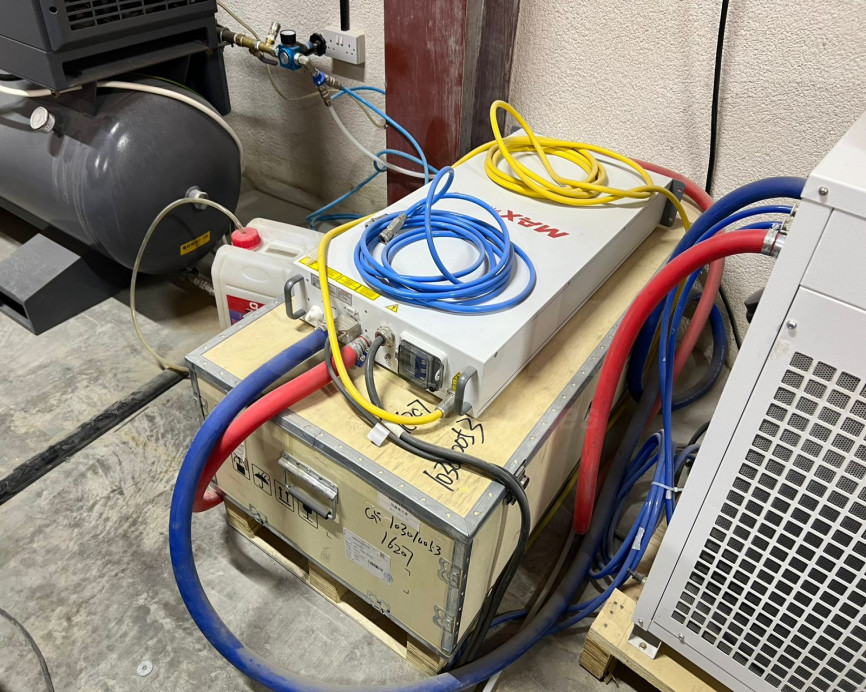

Equipped with a Max Photonics laser source and a heavy-duty gantry system, this machine offers exceptional stability and industrial longevity.
Includes cooling unit and power source as shown in photos.
Air compressor also available at additional cost.
Only 6 months since installed at the facility.
Selling due to moving to a new facility.
Original Price; 300, 000 AED
Contact now for viewing and inspection.
Technical Specifications
| Laser Source | Max Photonics Fiber Laser (High-stability, maintenance-free source) |
|---|---|
| Cutting Area | 3000mm x 1500mm (Standard 10ft x 5ft work table) |

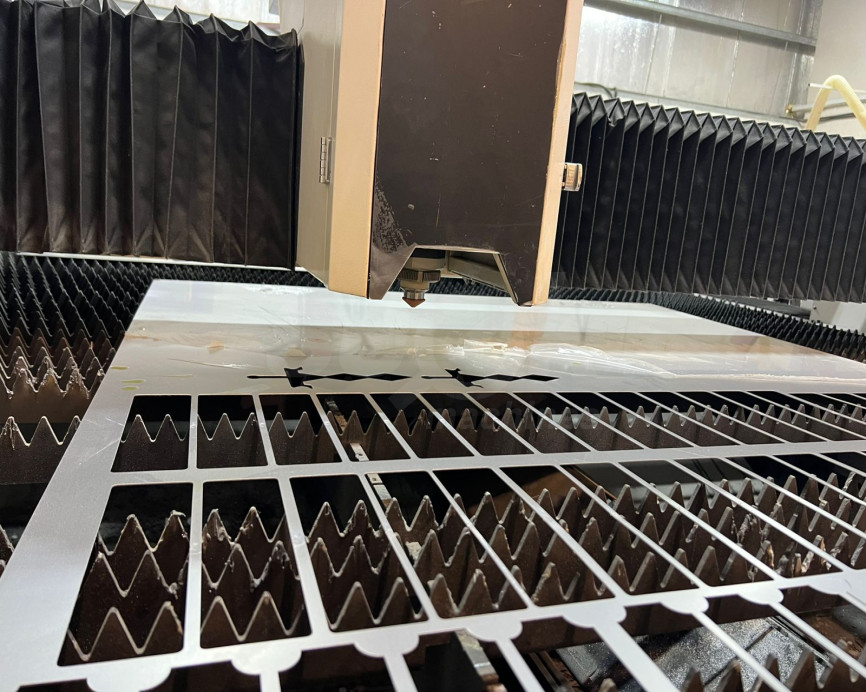

| Cutting Head | Raytools Auto-Focus Head (Swiss-designed for precision height sensing) |

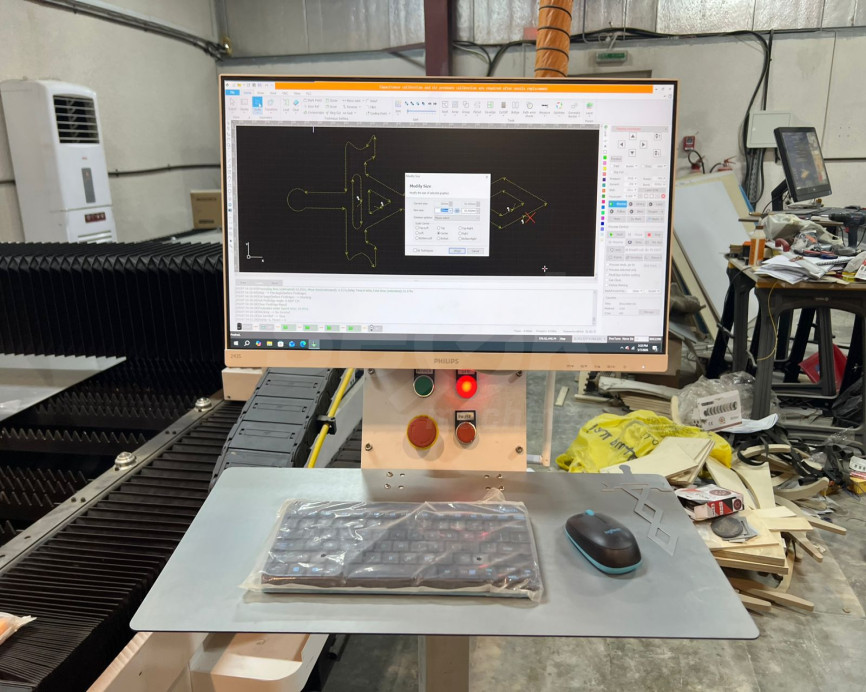

| CNC Control | CypCut / FSCUT2000 (Industry-standard software for easy file importing and nesting) |
| Motion System | High-torque Yaskawa (Japan) or Delta Servo motors for high-speed rapid travel |
| Positioning Accuracy | ±0.03mm with ±0.02mm repeatability |
| Frame Design | Heavy-duty carbon steel plate welded bed (Heat-treated to prevent deformation) |
| Guide Rails | HIWIN (Taiwan) high-precision linear square rails with protective bellows |

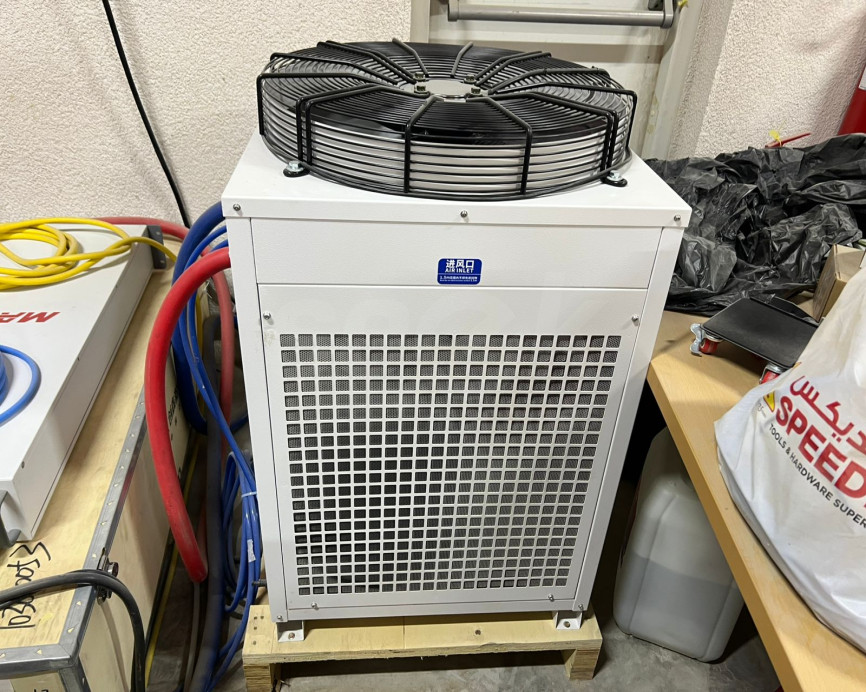

| Cooling | Dual-circuit industrial water chiller for simultaneous laser and head cooling |
