Description

Hydraulic adjustment of top roll (useful length 95 mm)
Hydraulic cylinder thrust kg 8,800
Normal pressure bar 230

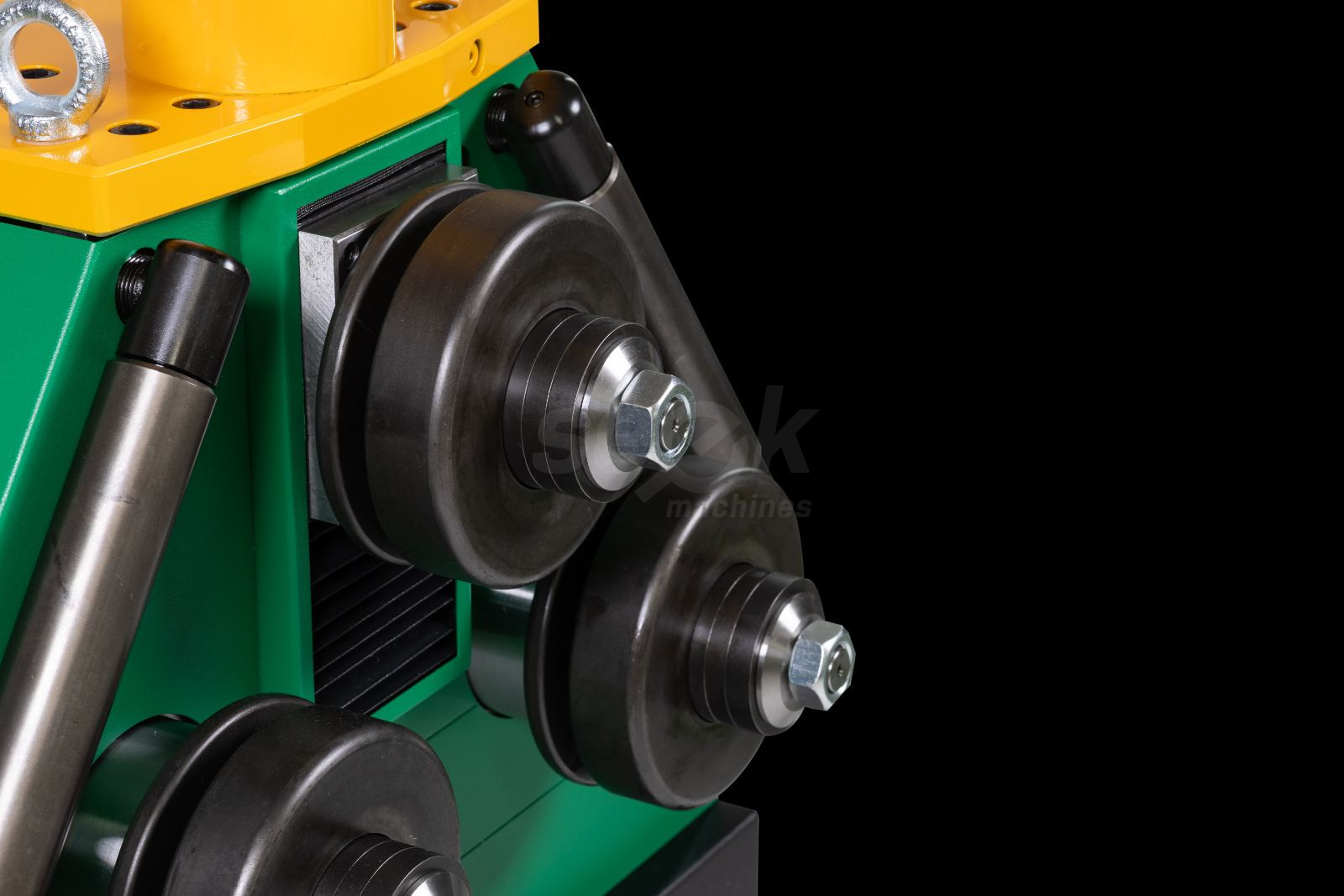

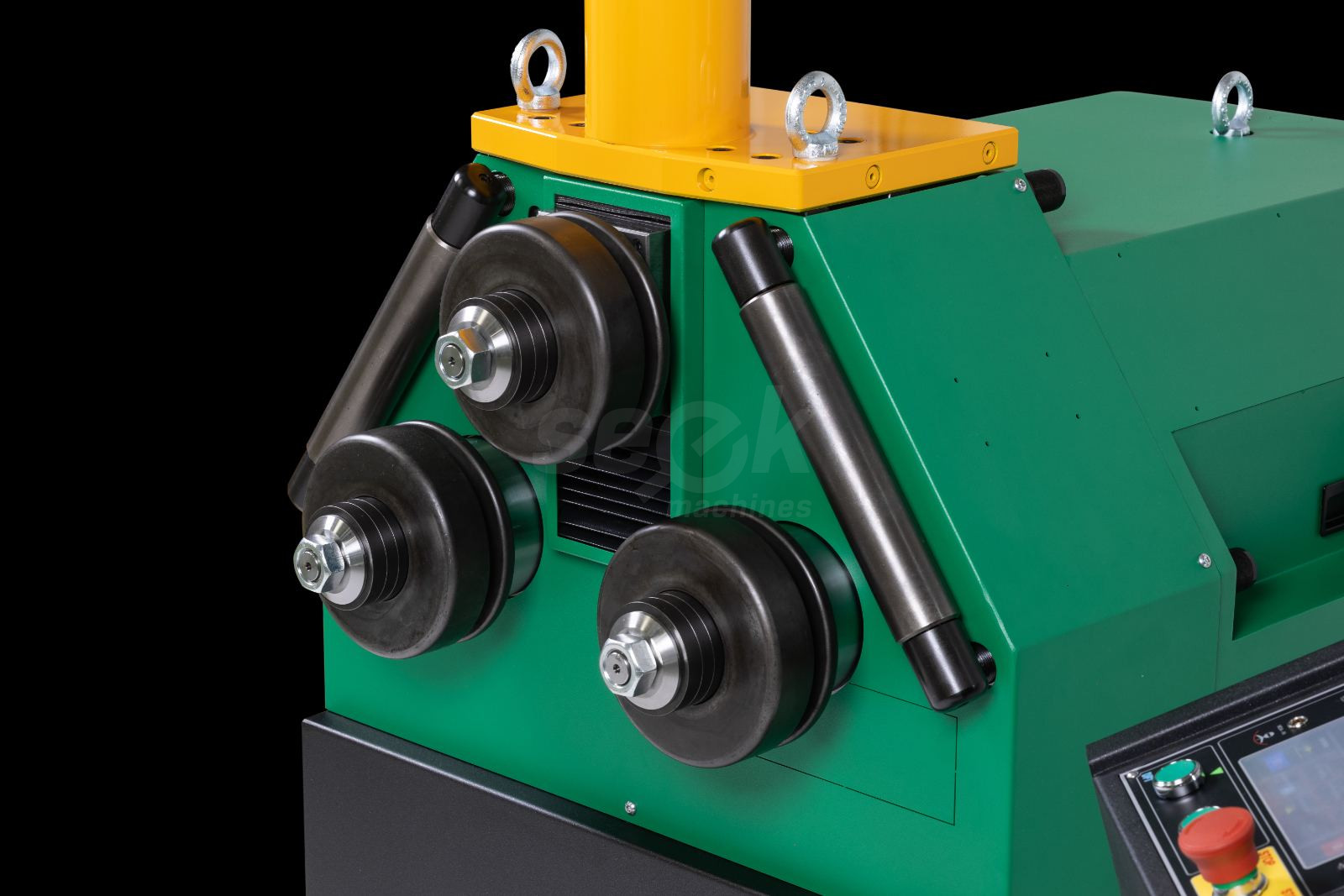

3 driven rolls, smooth surface

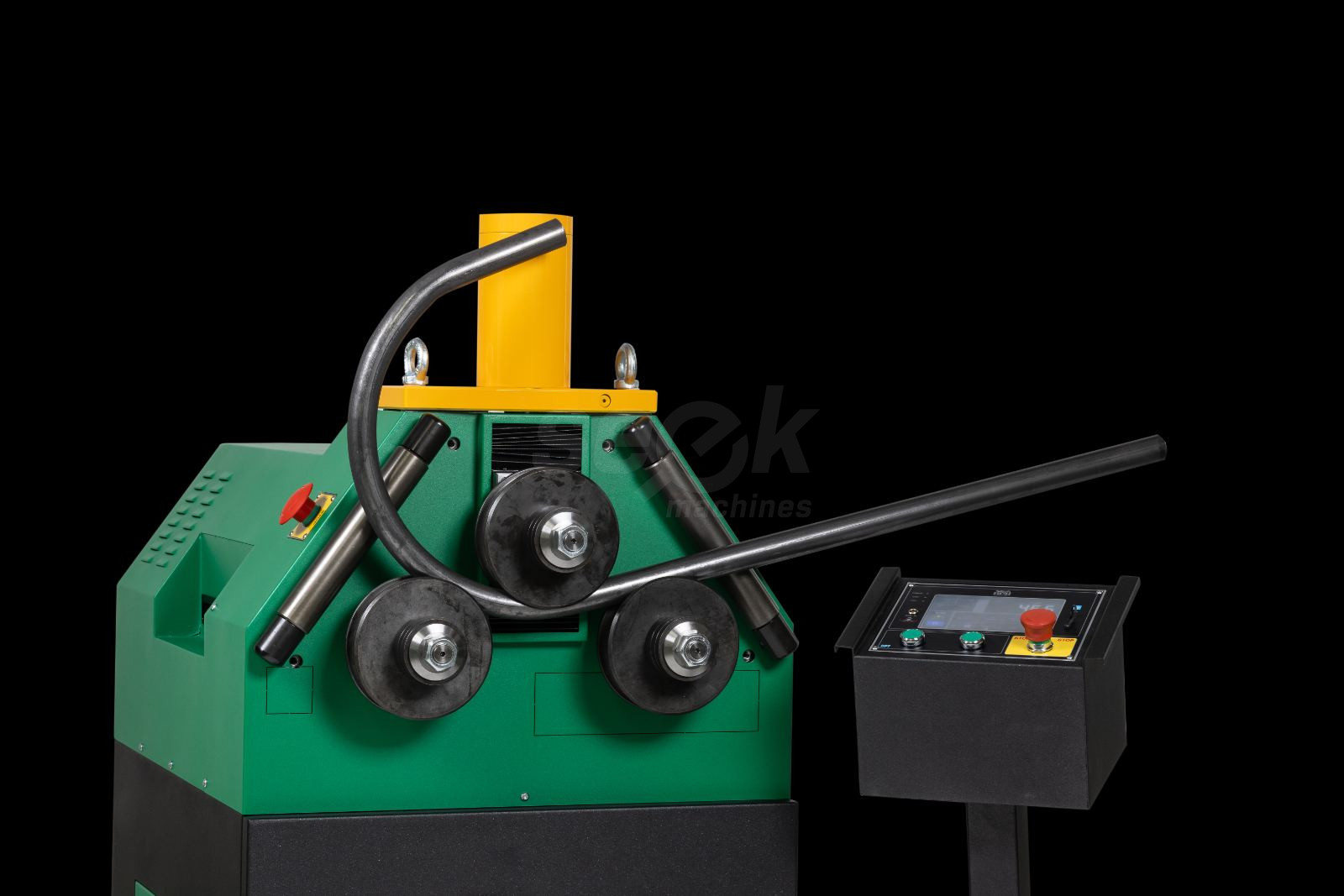

Possibility to write, view and store up to 20 bending programs, each containing up to 20 steps, thanks to the digital control panel DP7 that allows also the import/export of the programs via USB stick
It is possible to connect the archimeter to the panel in order to read directly the bending radius obtained

Steel frame FE 430B, heavily dimensioned
Block ways with Z-Block anti-deflection system (patented)
High strength steel 38NiCrMo4 shafts, hardened and ground
Gears in special alloy steel 38NiCrMo4 with precision ground teeth

Roll components in nickel-chrome tool steel hardened to 58÷60 HRC
Clutch coupling mounted on the upper roll (Torque Limiting Device)

Working position with horizontal and vertical shafts
Approximate weight 530 kgs
Machine dimensions: base 700 x 995 x 1,355 mm height
