ZX6350C Drilling and Milling Machine 30 mm Drilling / 25 mm End Milling Capacity
Metal processing
ZX6350C
China China
2007 United Arab Emirates
Machine Details
Item Details
| Name | ZX6350C Drilling and Milling Machine 30 mm Drilling / 25 mm End Milling Capacity |
|---|---|
| Item Code | SM2511536 |
| Model No | ZX6350C |
| Serial No | -- |
| Usage | used |
| Industry | Metal processing |
| Manufacturer | China |
| Year of Manufacture | 2007 |
| Country of Origin | China |
| Posted On | 21-11-2025 |
| Machine Location | United Arab Emirates |
Description
Well-maintained 2007 ZX6350C heavy-duty drilling and milling machine in very good working and cosmetic condition – clean table, smooth gears, no backlash in feeds, and original paint still present.
What makes the ZX6350C stand out:
Universal head (swivels ±90° left/right and ±45° forward/back) for angled drilling and complex milling without tilting the workpiece

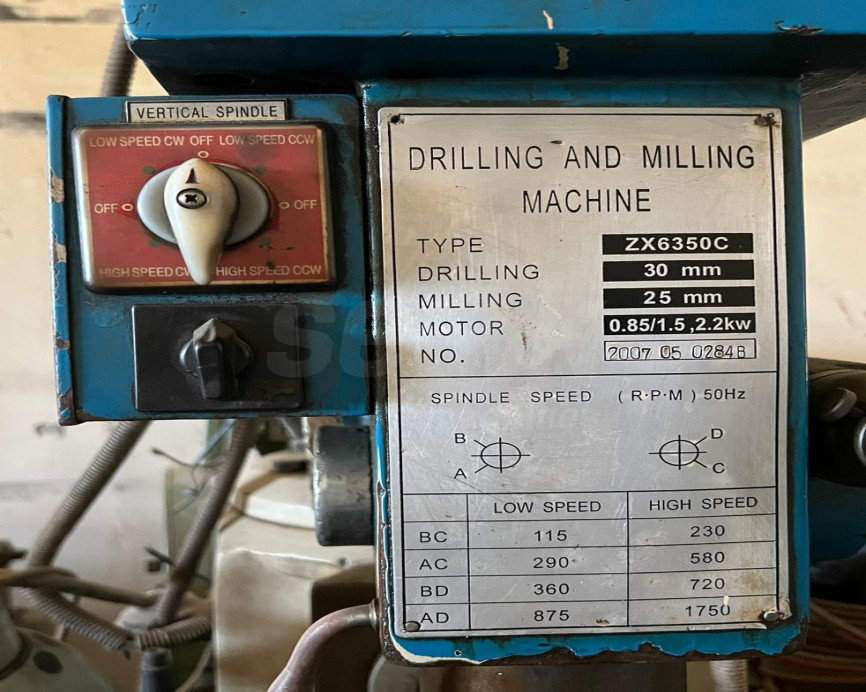

Proper geared headstock with two ranges (low 115–875 RPM, high 230–1750 RPM) – excellent low-speed torque for large drills and face mills
30 mm drilling capacity and 25 mm end-milling capacity in steel
Power longitudinal feed on X-axis plus manual Y/Z with fine downfeed
Robust cast-iron construction and dovetail column for rigidity
Only selling because we are upgrading the entire workshop to larger CNC machines.
This ZX6350C has been regularly serviced, runs perfectly, and is ready for immediate professional use in any workshop, school, or small production facility.
Technical Specifications
| Max Drilling Capacity | 30 mm |
|---|---|
| Max End Milling Capacity | 25 mm |
| Max Face Milling Capacity | 80–100 mm |
| Spindle Taper | ISO30 |
| Table Size | 800 × 240 mm |
| Spindle-to-Table Distance | 100–480 mm |
| Power Feed | X-axis |
| Voltage | 380–400 V 3-phase 50 Hz (standard) |
Catalogs
| Technical Catalog |
No catalog uploaded by the seller |
